Valen Rev+ 20” Electric Fat Tire Bike | Matte Olive Drab
Valen Rev+ Fat Tire Electric Bike
  • 28mph top assisted speed
  • Center-mounted color display
  • Fully integrated 720Wh battery using LG 21700 cells
  • On-bike or off-bike battery charging capability
  • Tektro hydraulic disc brakes with e-bike specific rotors
  • Heavy-duty fat tires with puncture protection & reflective strip
  • Easy-change rear wheel removal system
  • Integrated front and rear lights
Sale
NEW!
UL2849 Certified

Valen Rev+ Fat Tire Electric Bike

$1,699.99
/

All terrain. Any adventure. Always down.
Off-road trails, tough-as-nails, wind in your sails. Whatever your thing is, Valen Rev+ is the only e-bike that can match your boldness and accept the same challenges you would. Fully equipped with a powerful, integrated 720Wh battery, 750W motor, and range of up to 68 miles per charge, this do-it-all e-bike can handle your longest, farthest, and most daring adventures. Pedal as much or as little as you’d like with a full throttle and 6 levels of Pedal Assist that can propel you up to 28mph; and with 4” puncture-protected fat tires and a 100mm suspension fork, you’ll effortlessly glide over any terrain as if the bumps and cracks aren’t even there. Feel free to blaze your own trails – roads are merely suggestions.
Color
Keep your e-bike safe with a foldable bike lock
Fortitude Folding Bike Lock With Carrier - 5mm
$49.99
Color —
?
The delivery date is estimated based on carrier guidance. Actual delivery time may vary and is not guaranteed by Retrospec or the carrier.
This item will need to take an additional 1-2 weeks to ship.Free Shipping
50 Day Returns

Where the road ends, adventure begins

Get to know your ride
Valen Rev+ 20” Electric Fat Tire Bike | Matte Olive Drab

28mph

Top assisted speed

Up to 68 Miles of Range

Highest range Rev e-bike

6 Pedal Assist Levels

Propel while pedaling

750W

Planetary geared hub motor

48V/720Wh

LG Li-ion battery

Tektro Hydraulic Disc Brakes

Consistent & confident stopping power

4” Fat Tires

Superior puncture protection for any terrain

100mm Travel Suspension Fork

Absorbs impact

350 lbs

Recommended weight limit

UL2849 Certified

Safety tested and approved by a UL accredited lab
Features

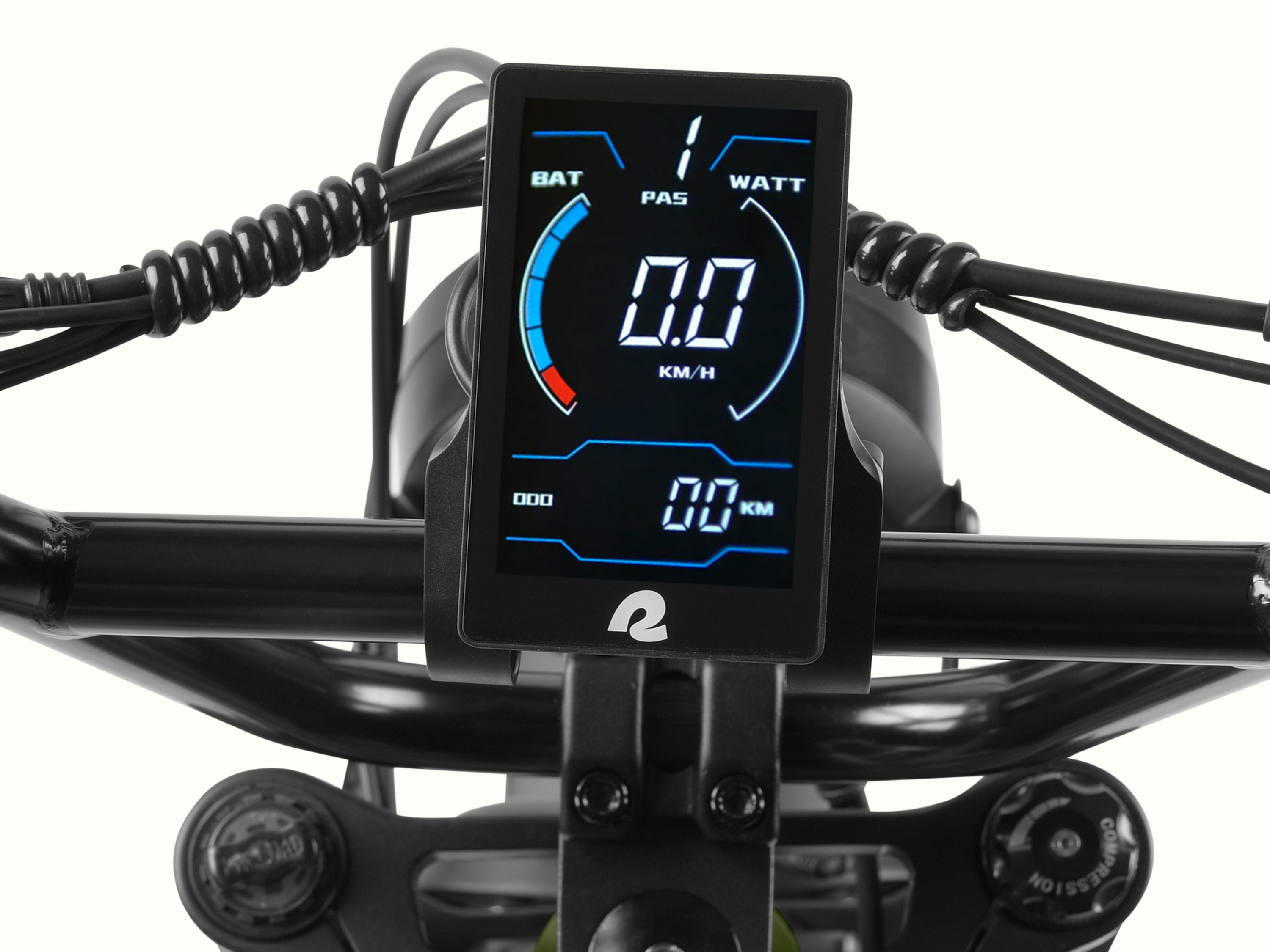

Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, & more. Keep track of it all with your eyes on the road using the easy-to-read, center-mounted color display.
Choose Your Boost
You’re in total control of your ride. With a convenient push-to-go throttle and 6 levels of Pedal Assist, you can choose how much or how little assistance you want and ride up to 28mph.

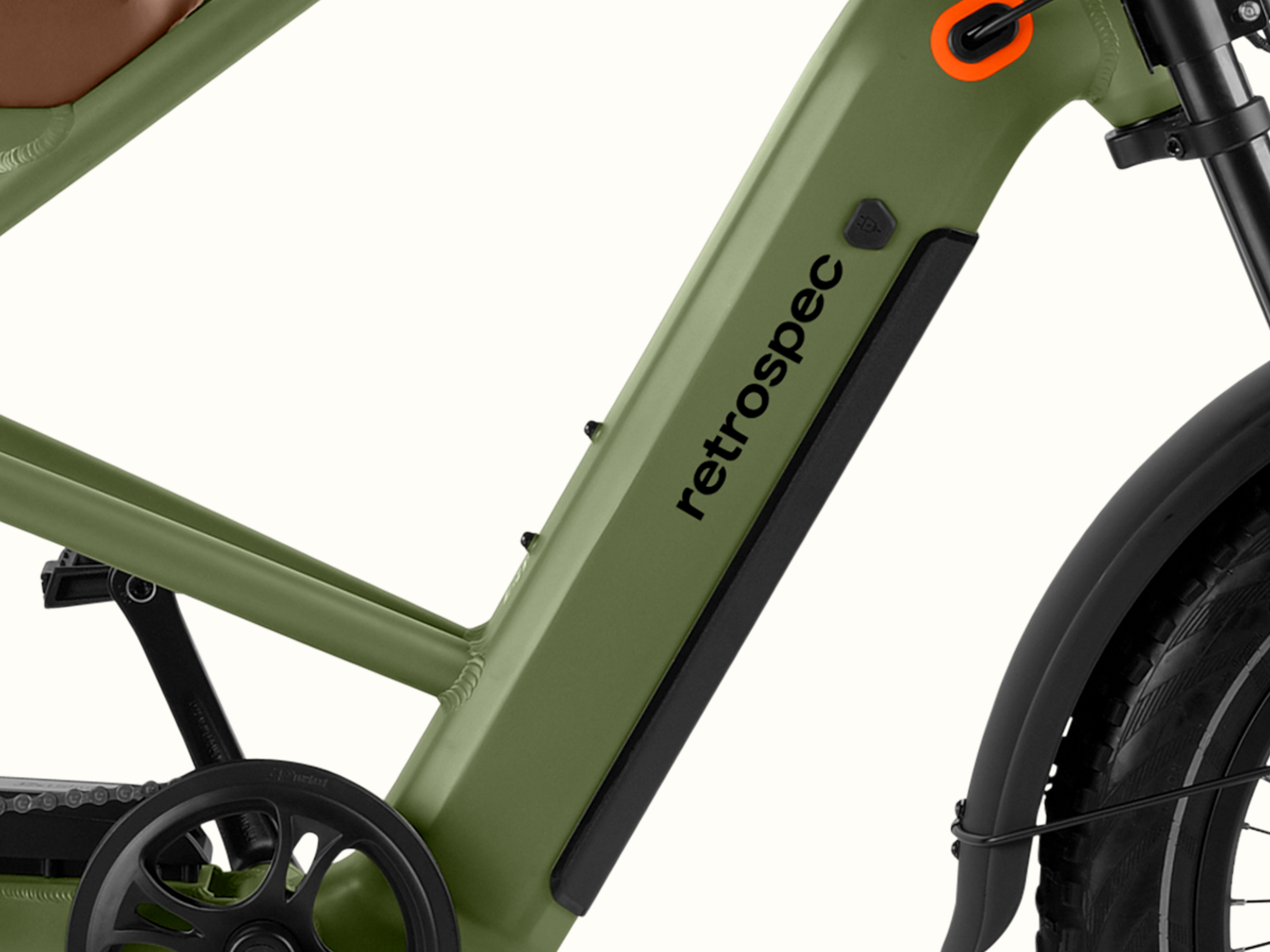

On- or Off-Bike Charging
This e-bike’s fully integrated battery is uniquely able to be charged both on and off the bike. It also uses LG 21700 cells to store more energy and offer up to 68 miles of range when fully charged.

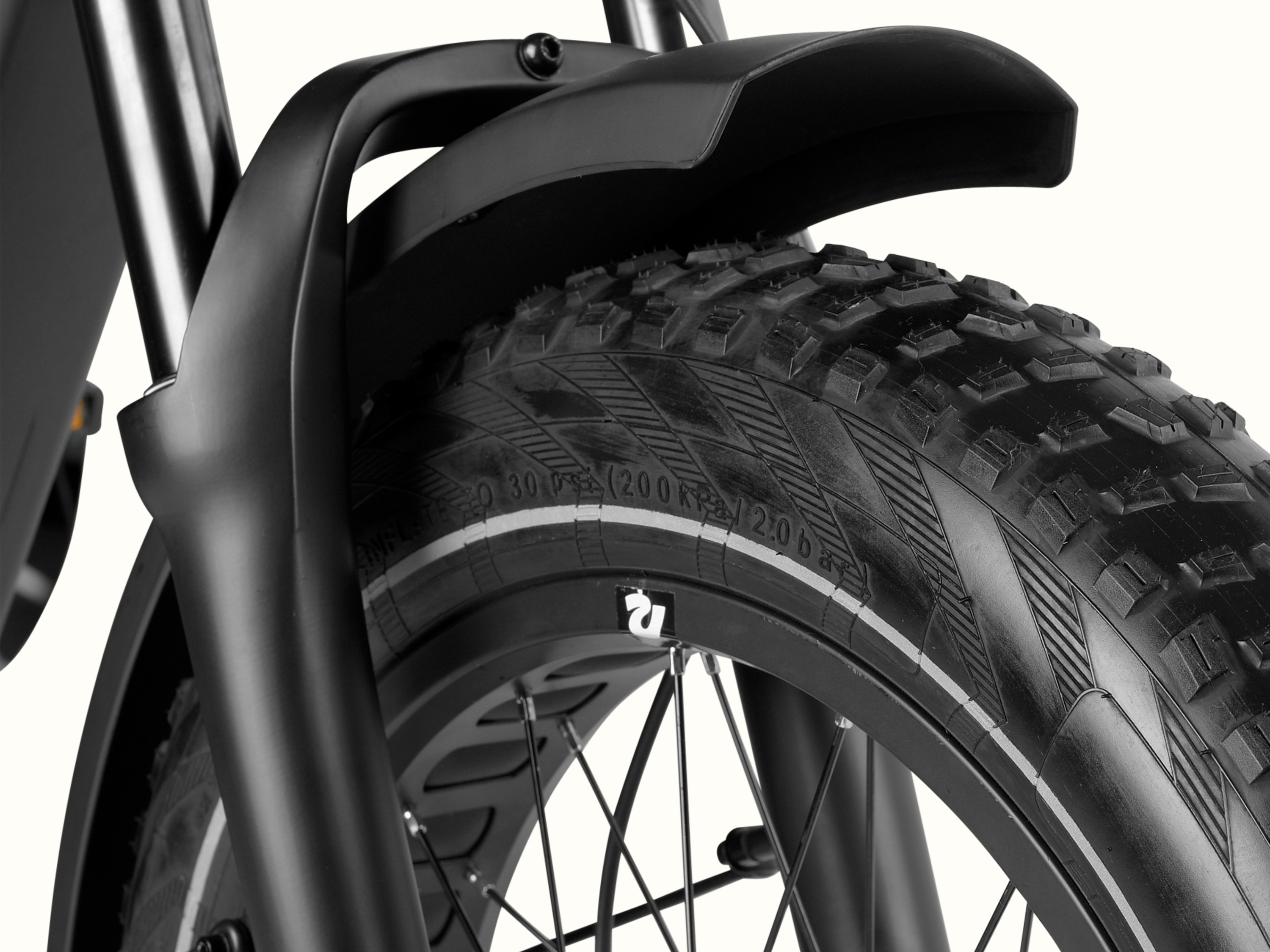

Off-Road Ready
Fat 20x4.0 tires are made with heavy duty construction, full-coverage puncture protection, and a reflective safety strip, offering stable, comfortable, and smooth rides on any terrain.

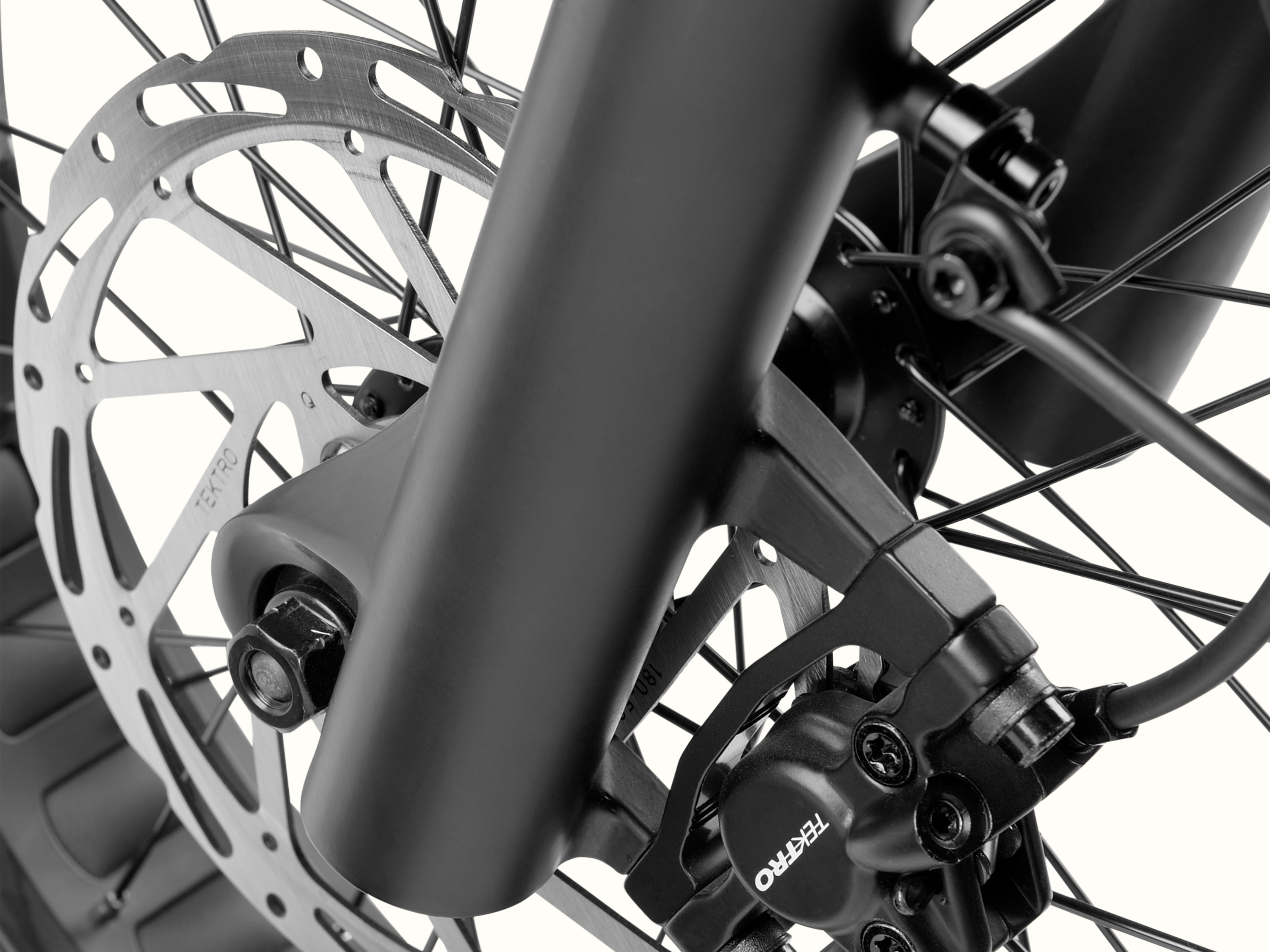

Quiet, Consistent, Confident Braking
Tektro hydraulic disc brakes with e-bike specific rotors offer reliable stopping power in any weather, so you can brake confidently.

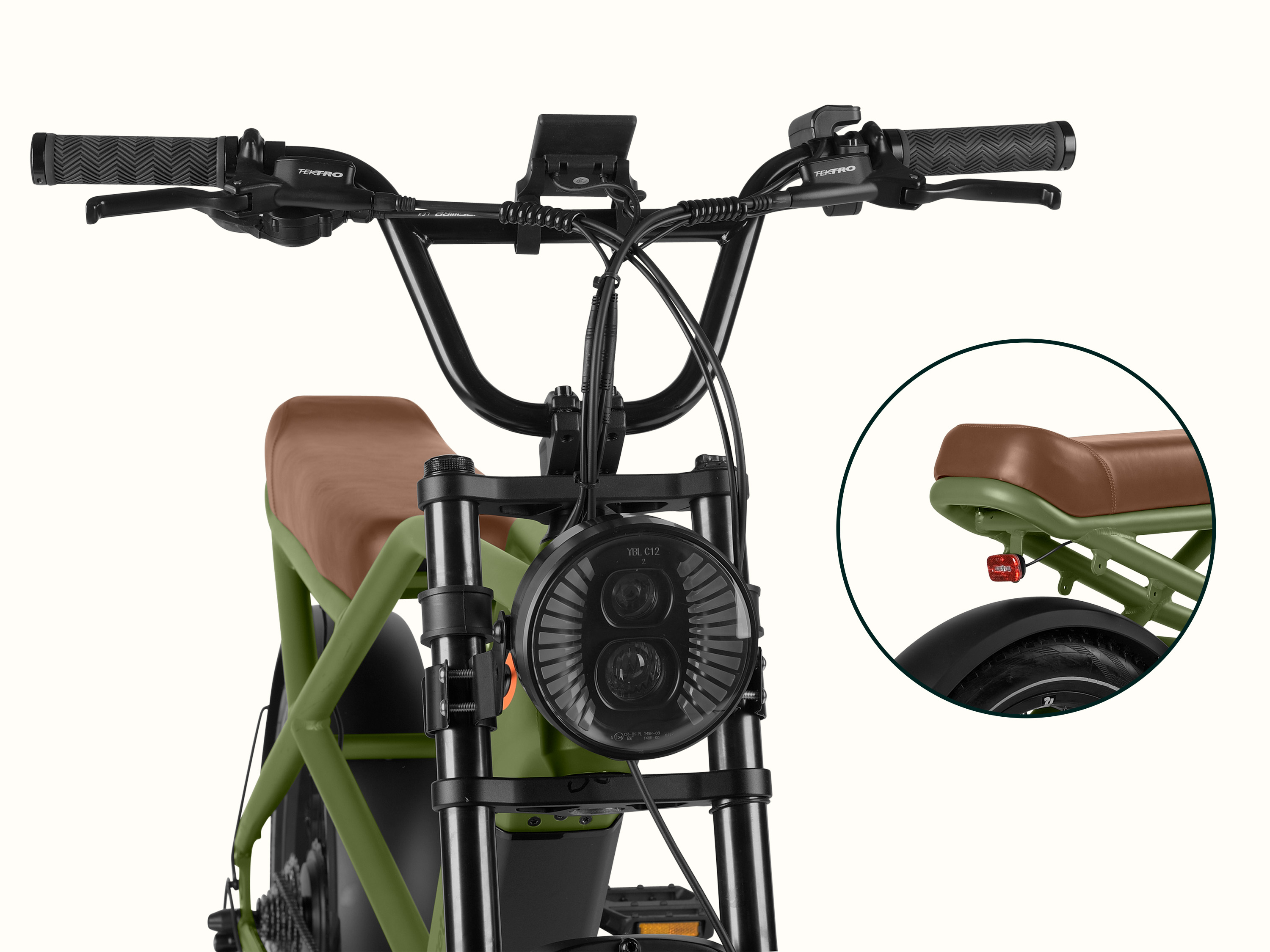

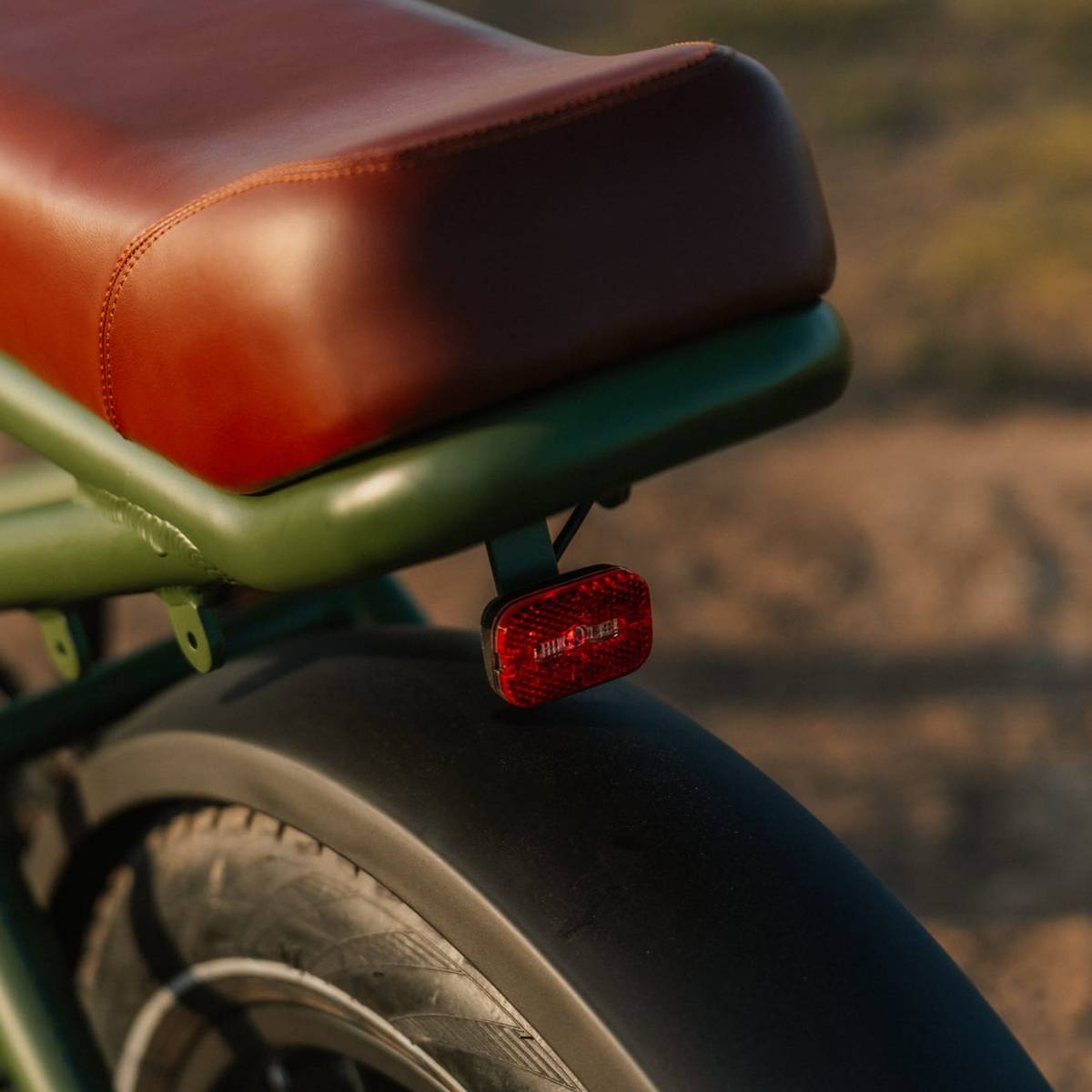

Stay Seen, Stay Safe
Integrated front and rear lights illuminate your path and help keep you safe while riding in low light. The headlight’s 100 Lux illumination and the tail light’s brake indicator further improve the bike’s visibility.

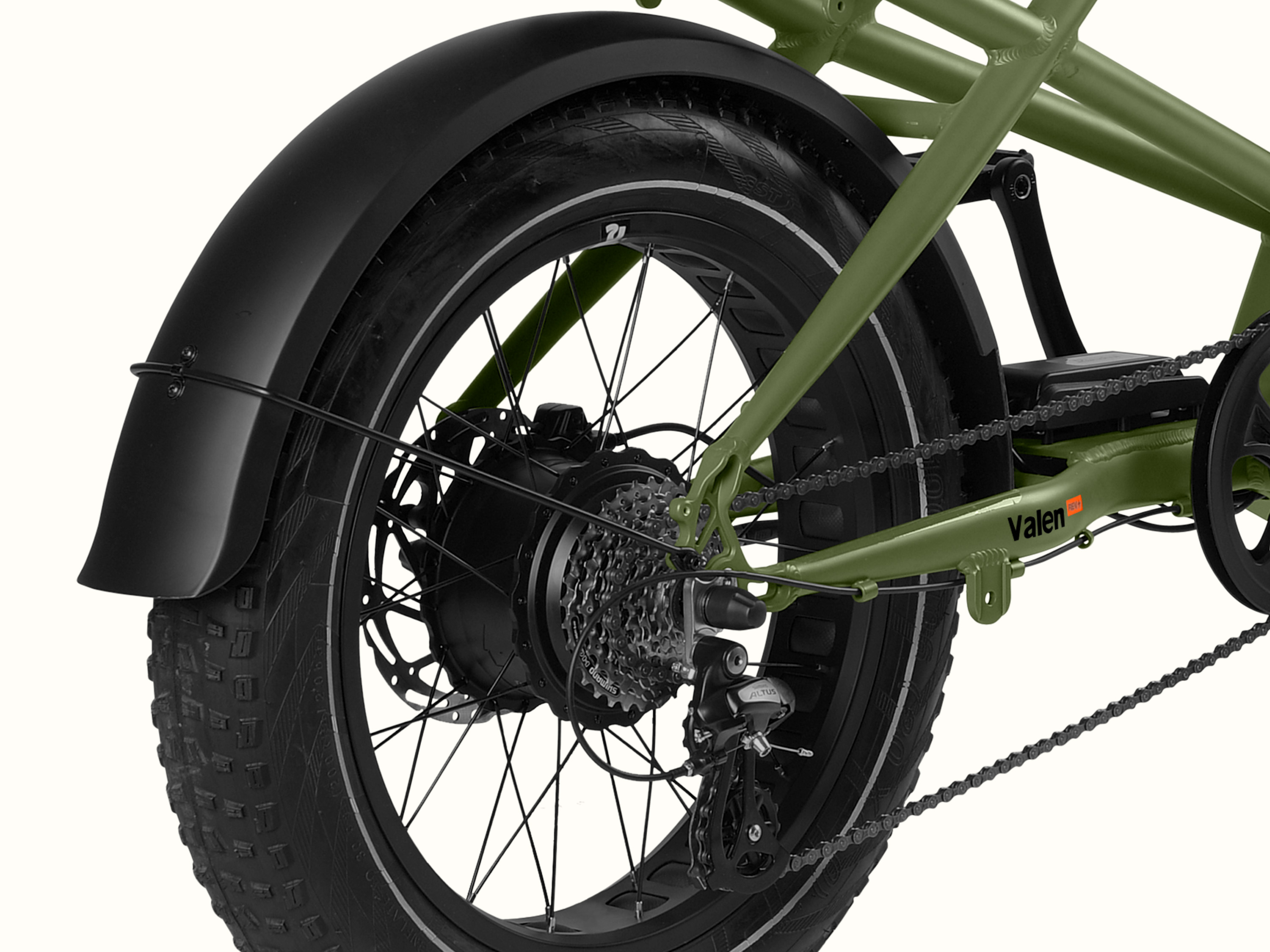

Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.

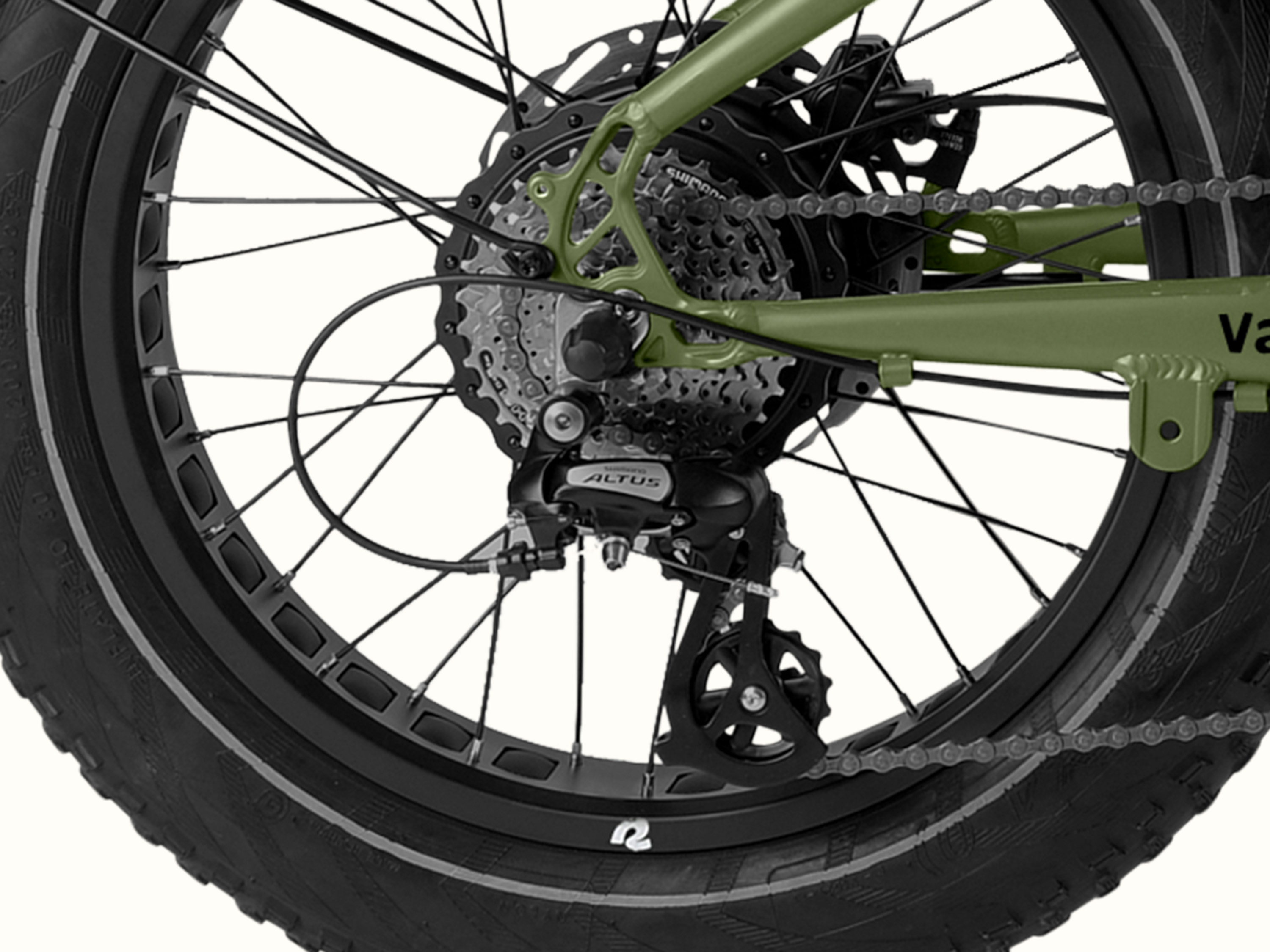

Tackle Inclines or Cruise Flats
With a robust, versatile Shimano 8-speed drivetrain
UL2271 & UL2849 Safety Certified
This e-bike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Best for all terrain
Pavement
Gravel
All terrain
  • Specifications
  • Sizing
  • Financing
  • Assembly instructions
  • Owner's Manual
Specifications
Specification
Frameset
  • Material Valen 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger.
  • Fork Triple Clamp with 100mm of travel
Wheelset
  • Rims 20" single-wall aluminum 36H, for disck brake with cut-outs
  • Hubs F: Aluminum bolt-on with 17mm axle nuts. 36 hole
  • Spokes 13G w/brass nipples
  • Tires 20 x 4.0, Fat MTB with puncture protection and reflective sidewall
E-Power System
  • Motor 750W rear hub
  • 48V/750W Battery 720Wh/48VLG 21700 cells; Charge on or off bike
  • Display Center mounted color LCD
  • Charger 48V/2A
  • 48V/750W range Up to 68 miles
  • Assist Levels 1-6 PAS, Throttle and walk-mode
Drivetrain
  • Rear Derailleur 8 speed Shimano Altus
  • Shifter 8 speed Shimano Rapidfire Plus
  • Crankset 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard
  • Chain KMC 8 speed
  • BB Sealed cartridge
  • Freewheel/Cog Shimano 8 speed 11-34T
Components
  • Headset 1-1/8” semi-integrated threadedless
  • Brakes Tektro Hydraulic with 180mm e-bike specific rotors and semi-metalic pads
  • Handlebars Steel BMX
  • Grips Lock-on comfort grips.
  • Stem BMX Die Cast Alloy 22.2mm clamp

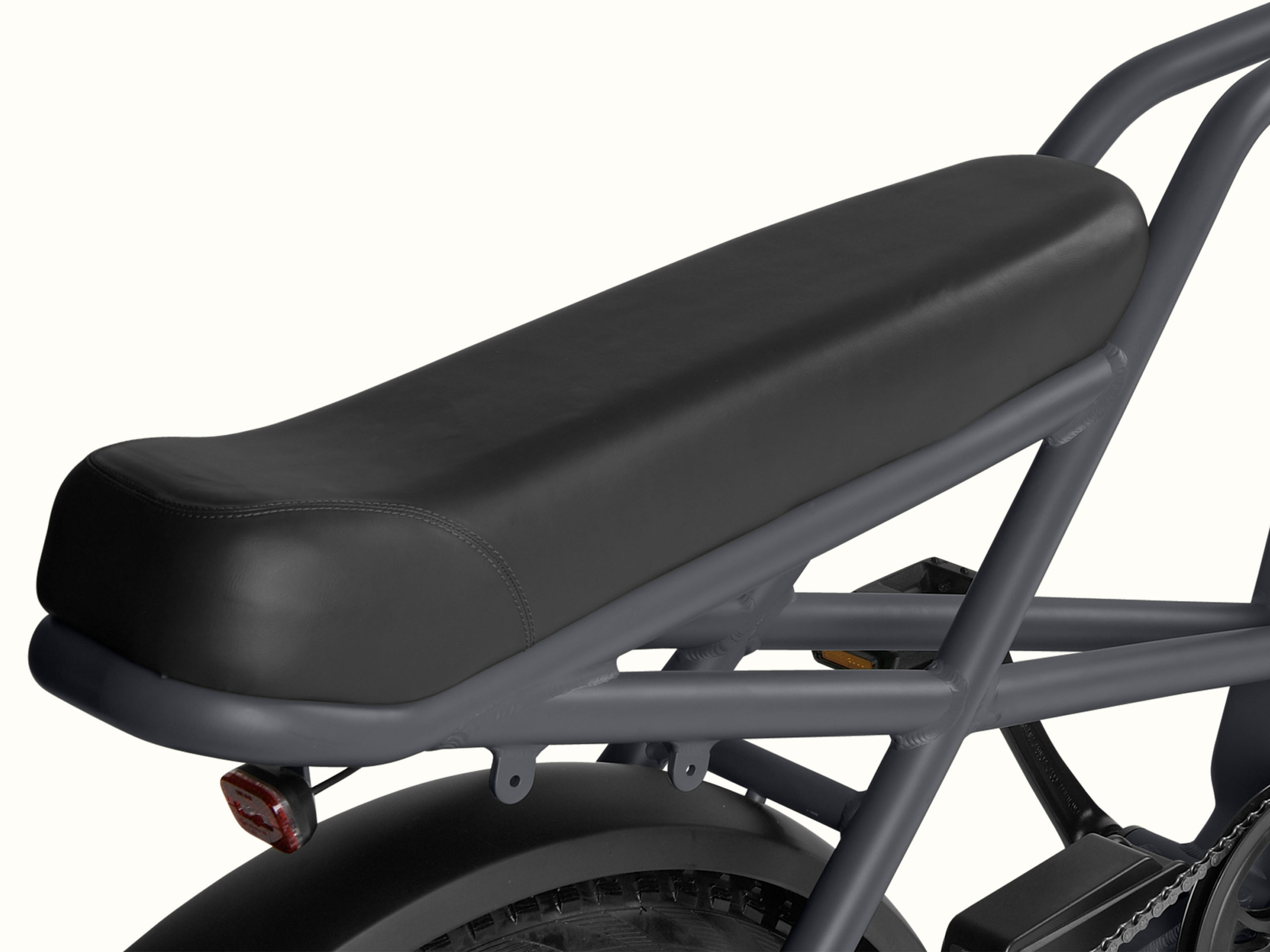

  • Saddle Retrospec Custom Moto
  • Pedals Aluminum plateform with non-slip tread.
Extras
  • Kickstand Alloy chainstay mount
  • Item Weight 72 lbs (battery included)
  • Recommended Weight Limit 350lbs
Sizing
Sizing
How to measure my inseam for a bike

Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:

  1. Stand upright with your feet 6-8" apart.
  2. Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
  3. Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
  • ARider Height
  • BInseam
  • CTop Tube
    • SizeHeight RangeStandover Height
    20" 31.5"
